Description

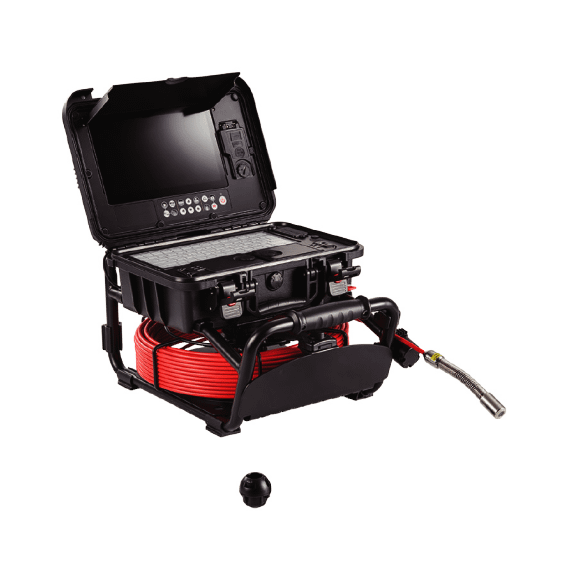

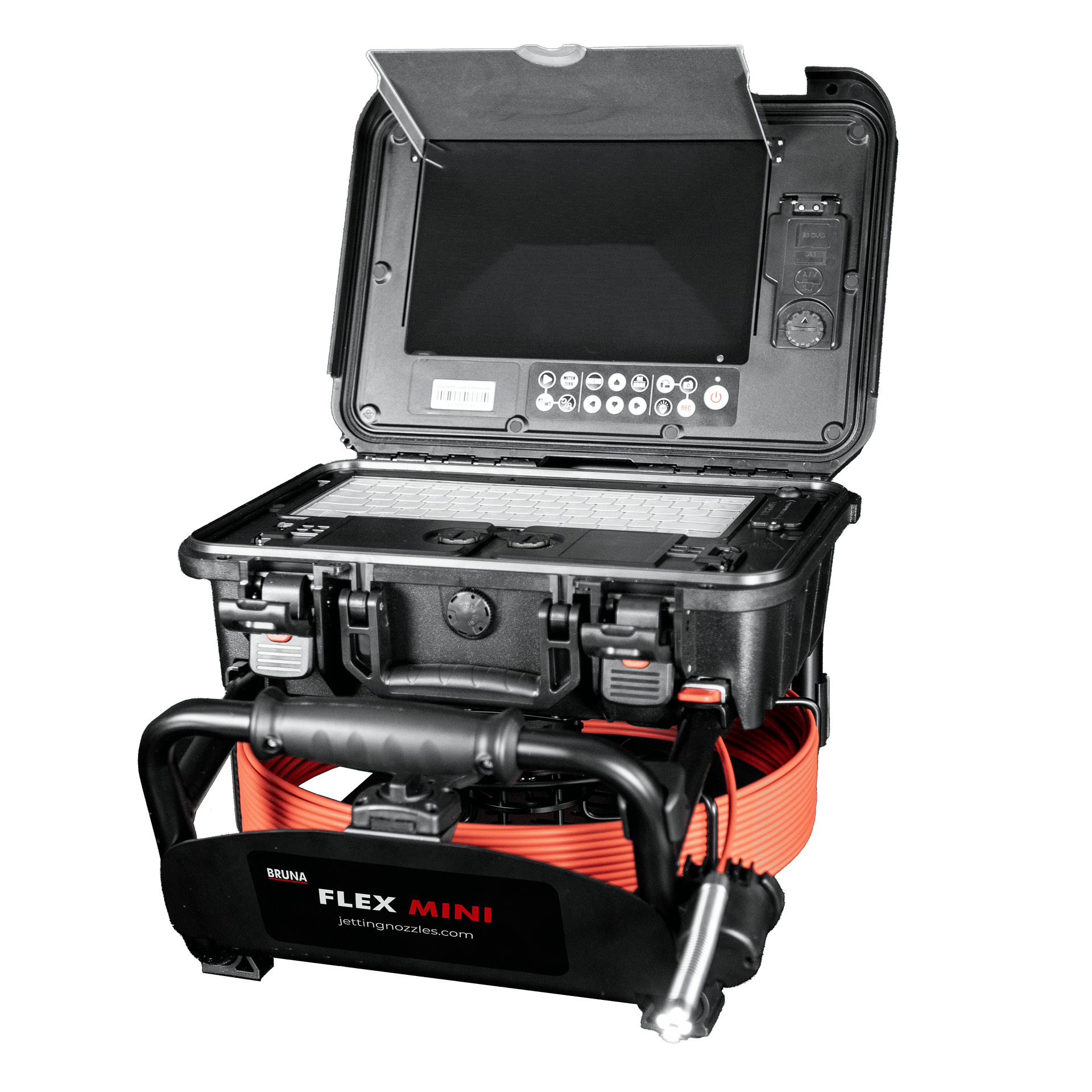

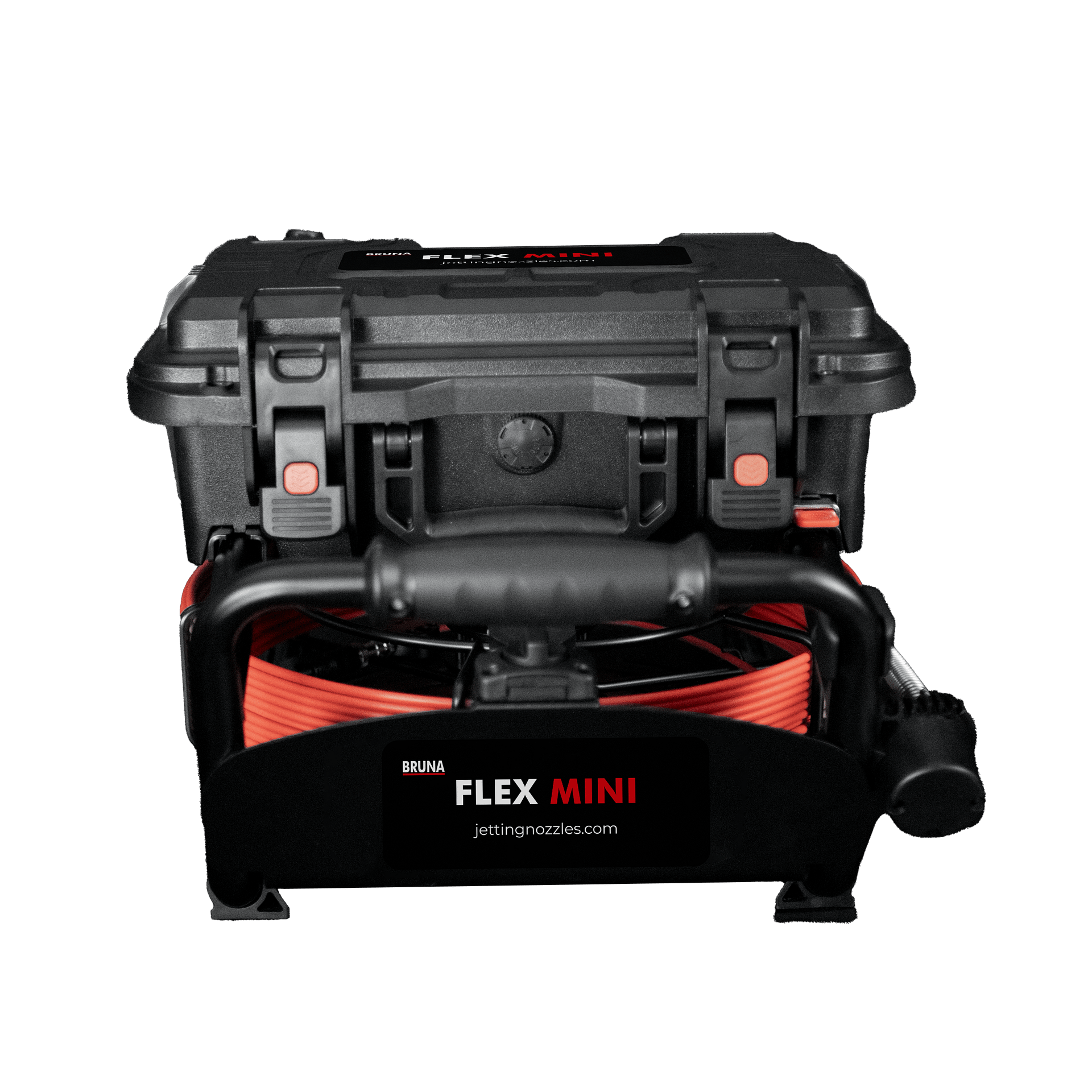

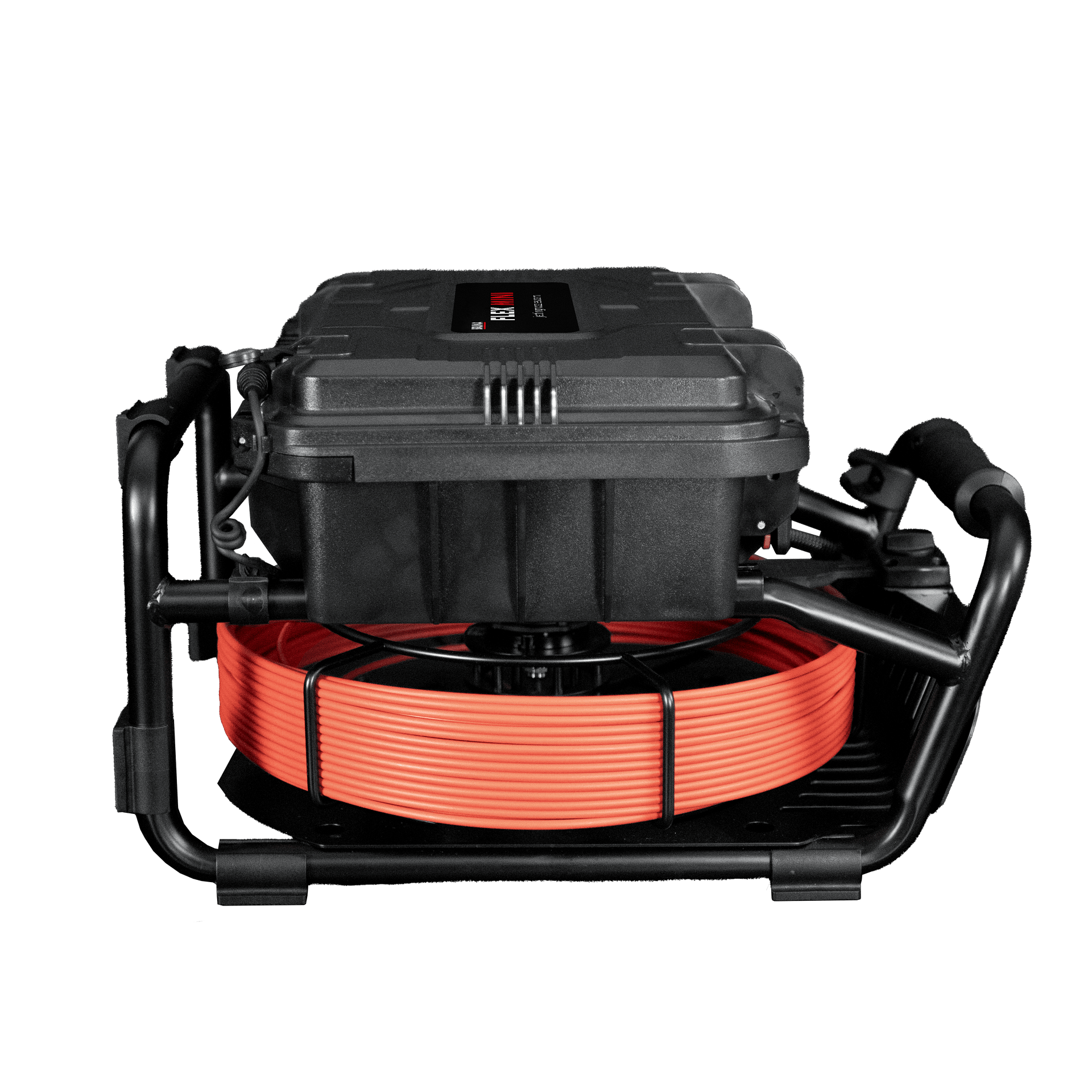

FLEX MINI Micro Sewer Camera System – Compact Power for Tight-Access Inspections
Purpose and Design
The FLEX MINI is a compact, rugged micro sewer camera system engineered specifically for inspecting small-diameter pipes and navigating tight-access areas. Its lightweight, highly portable design makes it easy to transport, setup, and clean while delivering professional-grade diagnostic power for challenging jobs.
How It Works
Featuring an ultra-slim 14 mm (0.55″) HD camera head paired with 100 feet of flexible 4.8 mm micro push cable, the FLEX MINI effortlessly negotiates sharp 90° bends and tight lines ranging from 1.25″ to 6.3″ in diameter. An integrated 512 Hz transmitter continuously sends a signal for pinpointing the exact location and depth of the camera head from above ground using standard digital locators.
Performance and Capability
Equipped with a vivid 10.1-inch HD monitor, the system provides exceptional clarity for real-time viewing and detailed condition reporting. Operators can easily record video, capture still photos (even while recording), and add real-time annotations using the included wireless keyboard or voice notes via the built-in microphone. With a built-in distance counter and camera orientation controls, you maintain complete precision and visual context throughout the entire inspection.
Applications
Ideal for:
- Inspecting small-diameter residential drains, sinks, and traps
- Navigating tight municipal or commercial pipes with multiple 90° bends
- Locating buried pipe damage, blockages, or roots using 512 Hz receivers
- Creating detailed, professional-grade inspection reports with text and audio notes
Benefits & Key Features
- Ultra-Compact Head: 14 mm (0.55″) HD camera head ideal for small lines ($1.25″ \text{ to } 6.3″$)
- High-Flexibility Push Cable: 100 ft (4.8 mm) micro push cable built for tight bends
- Integrated 512 Hz Sonde: Allows precise above-ground camera location
- Professional Diagnostics: 10.1″ HD monitor with video recording, photo capture, distance counter, and wireless keyboard for live notes
- All-Day Operation: ~6 hours of continuous battery life with home and vehicle charging included
- Rugged Build: Removable waterproof control box and protective camera skids/sleds included
Service & Support
Bruna Nozzles backs every system with dedicated support. We provide genuine replacement parts and direct troubleshooting assistance to keep your inspection equipment working and minimizing downtime when you need it most.
