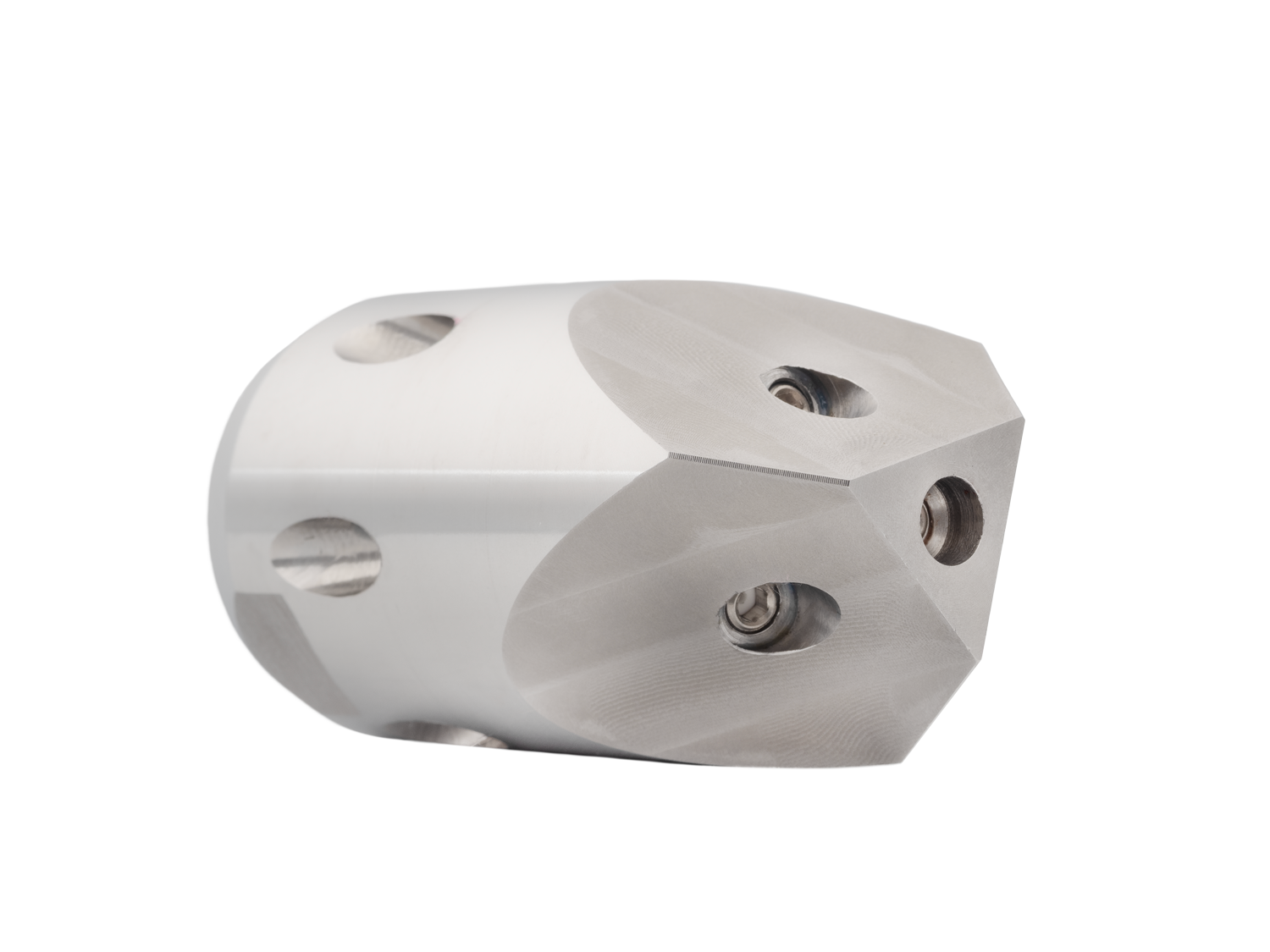

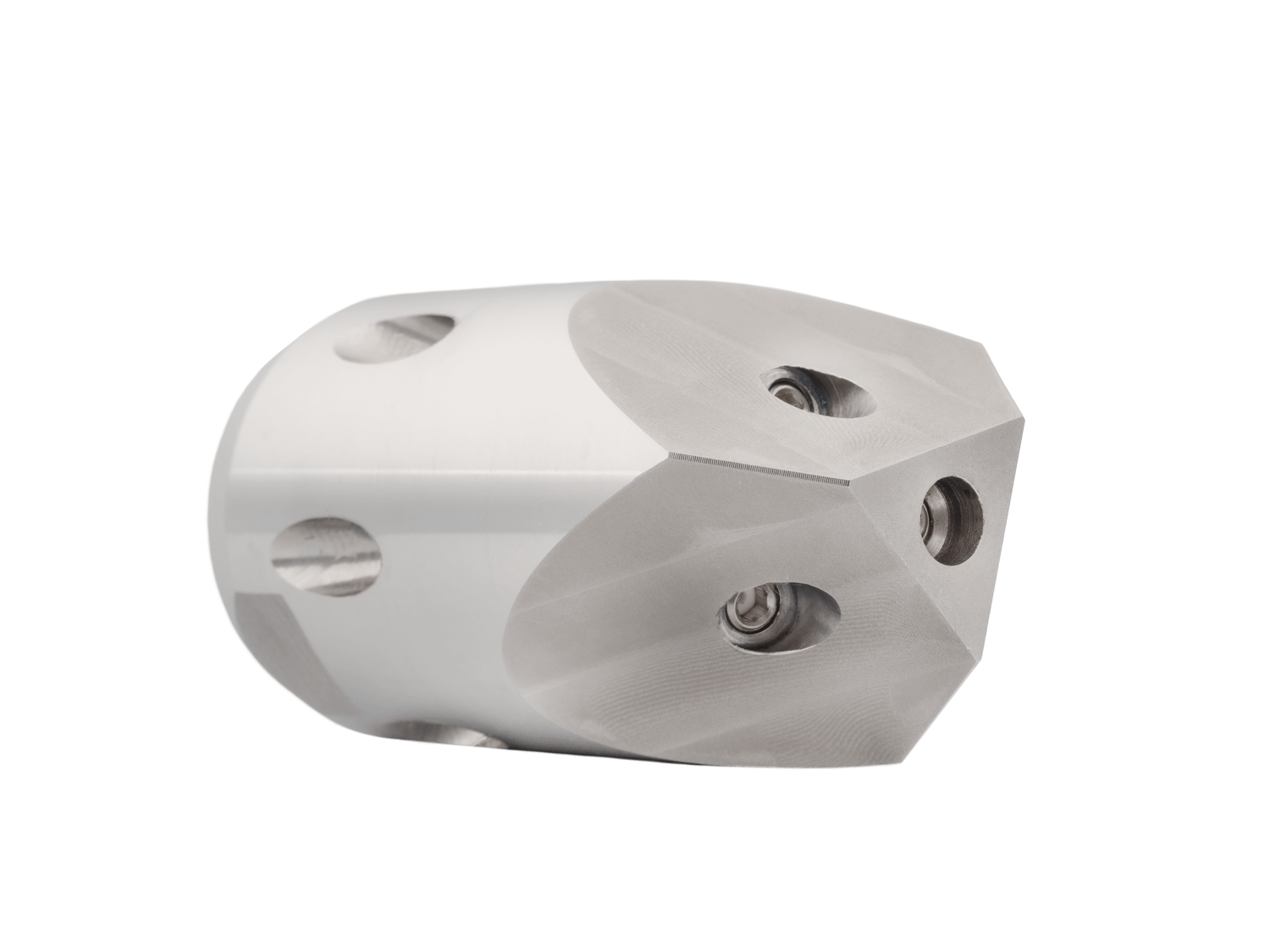

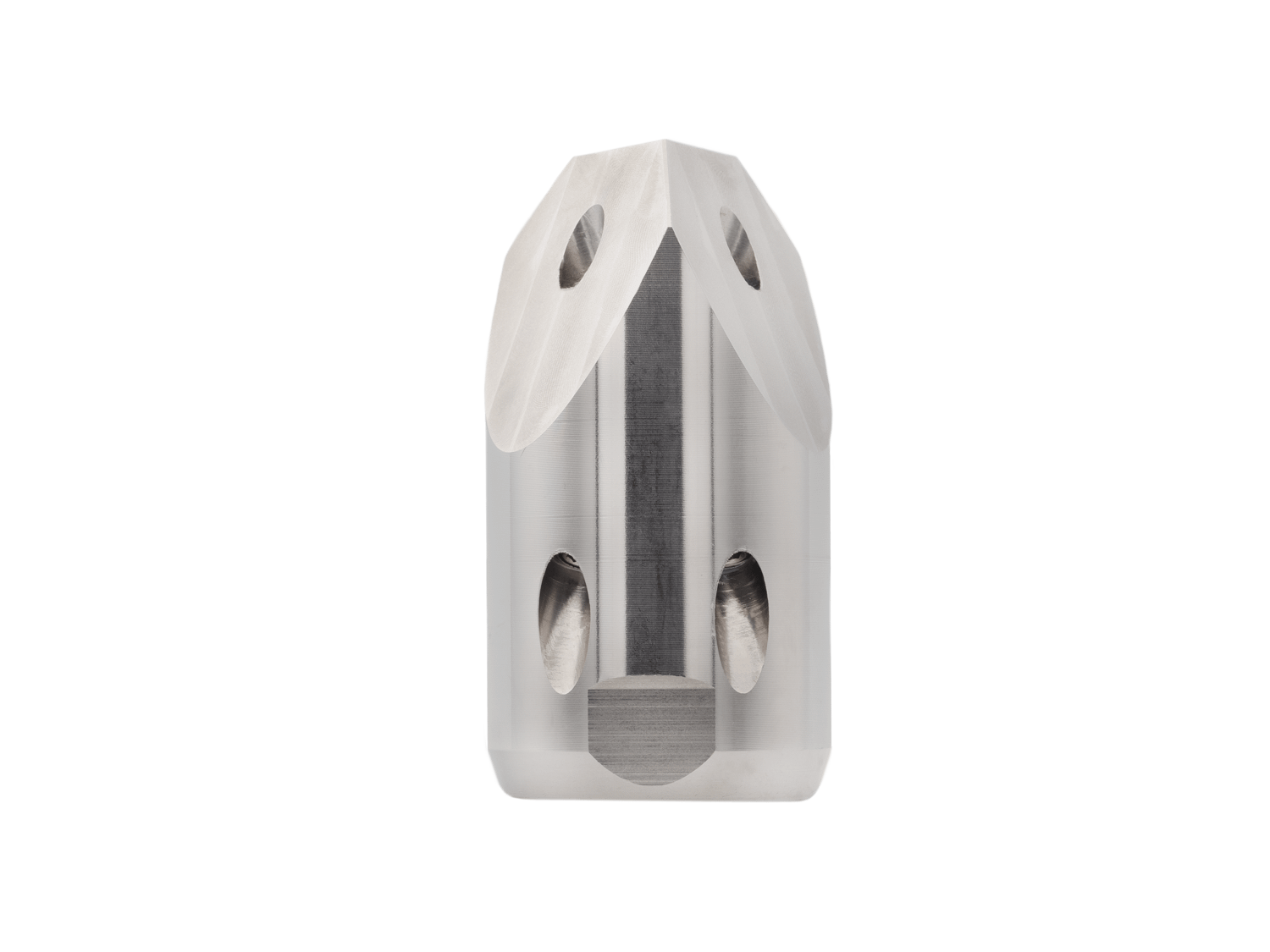

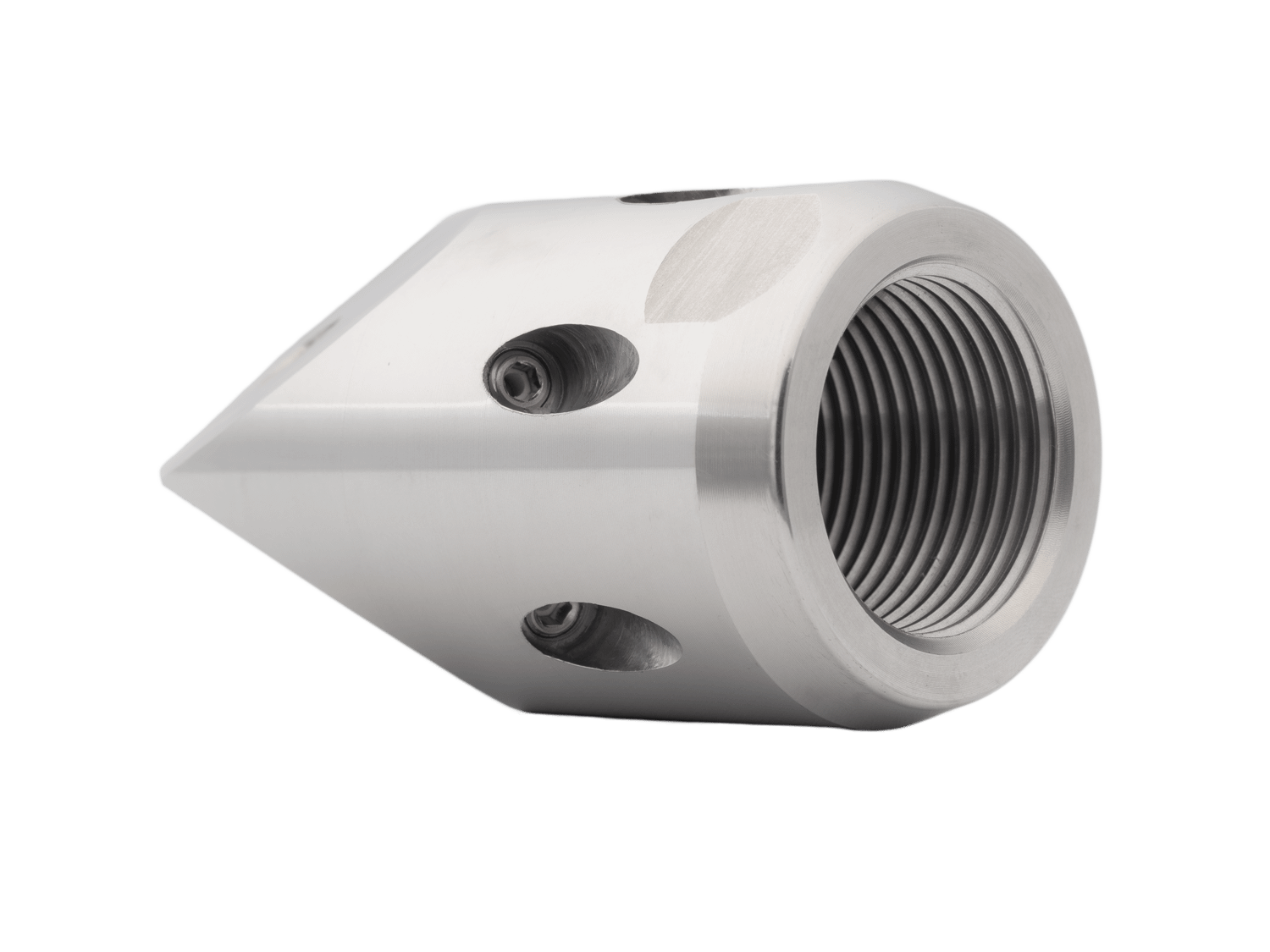

Breaker 1″ Reduced to 3/4″ Jetting Nozzle – Deep Unblocking Solution
The Breaker 1″ Reduced to 3/4″ jetting nozzle is a deep unblocking solution designed to penetrate severely blocked pipes, root masses, and frozen systems when a 3/4″ hose connection is required. Deep unblocking nozzles play a critical role in restoring flow under extreme conditions. In this configuration, our jetting nozzle combines high water flow with an aggressive angular design, allowing operators to tackle demanding cleaning tasks using existing 3/4″ equipment.
Technical Features
The Breaker 1″ Reduced to 3/4″ jetting nozzle is manufactured from stainless steel, providing durability and strong resistance to corrosion in harsh sewer environments. The original 1″ nozzle body connects to a 3/4″ threaded connection through a reduction adapter, ensuring compatibility with professional high-pressure hoses. Moreover, its design allows effective cleaning in pipes with diameters ranging from 6″ to 20″.
Efficiency in Deep Unblocking Operations

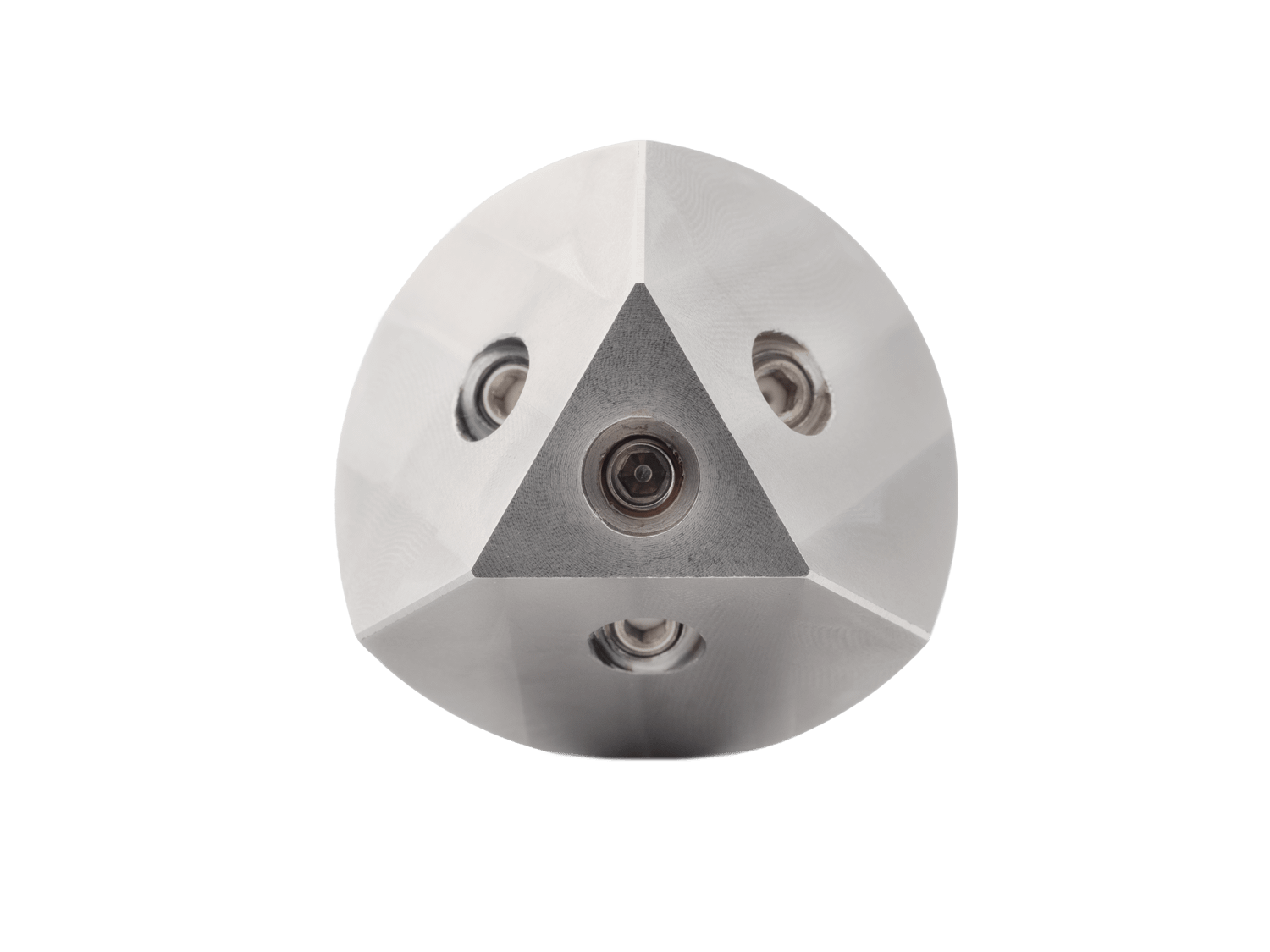

This nozzle delivers aggressive cutting and pulling power through a combination of three front M6 jets and six rear M6 jets. The front jets penetrate compacted blockages, roots, and frozen material, while the rear jets generate strong backward thrust and debris evacuation. In addition, our jetting nozzle operates with a minimum water flow of 21 GPM. As a result, operators achieve controlled and consistent unblocking performance even in difficult pipe sections.
Applications and Typical Uses
Professionals commonly use the Breaker 1″ Reduced to 3/4″ jetting nozzle in municipal sanitation, industrial pipe cleaning, and infrastructure maintenance. It performs especially well when cutting root intrusions, breaking compacted solid waste, and restoring flow in frozen pipelines. However, this reduced configuration becomes particularly useful when operators require deep unblocking capability while working with 3/4″ jetting systems.
Durability and Operational Benefits
The stainless steel construction extends service life and minimizes wear during continuous professional use. Furthermore, the aggressive angular profile improves penetration efficiency and reduces cleaning time. Consequently, operators benefit from lower maintenance requirements, reliable performance, and improved pipe lifespan.
Connection Details
- Original nozzle size: 1″
- Threaded connection: 3/4″
- Reduction method: 3/4″ thread adapter included
- Compatible with: 3/4″ fittings
Frequently Asked Questions
What type of blockages can the Breaker 1″ Reduced to 3/4″ jetting nozzle remove?
It removes roots, compacted debris, solid waste, and frozen blockages in medium to large pipes.
Why choose the reduced 3/4″ connection?
It allows operators to use existing 3/4″ hoses while maintaining effective deep unblocking performance.
