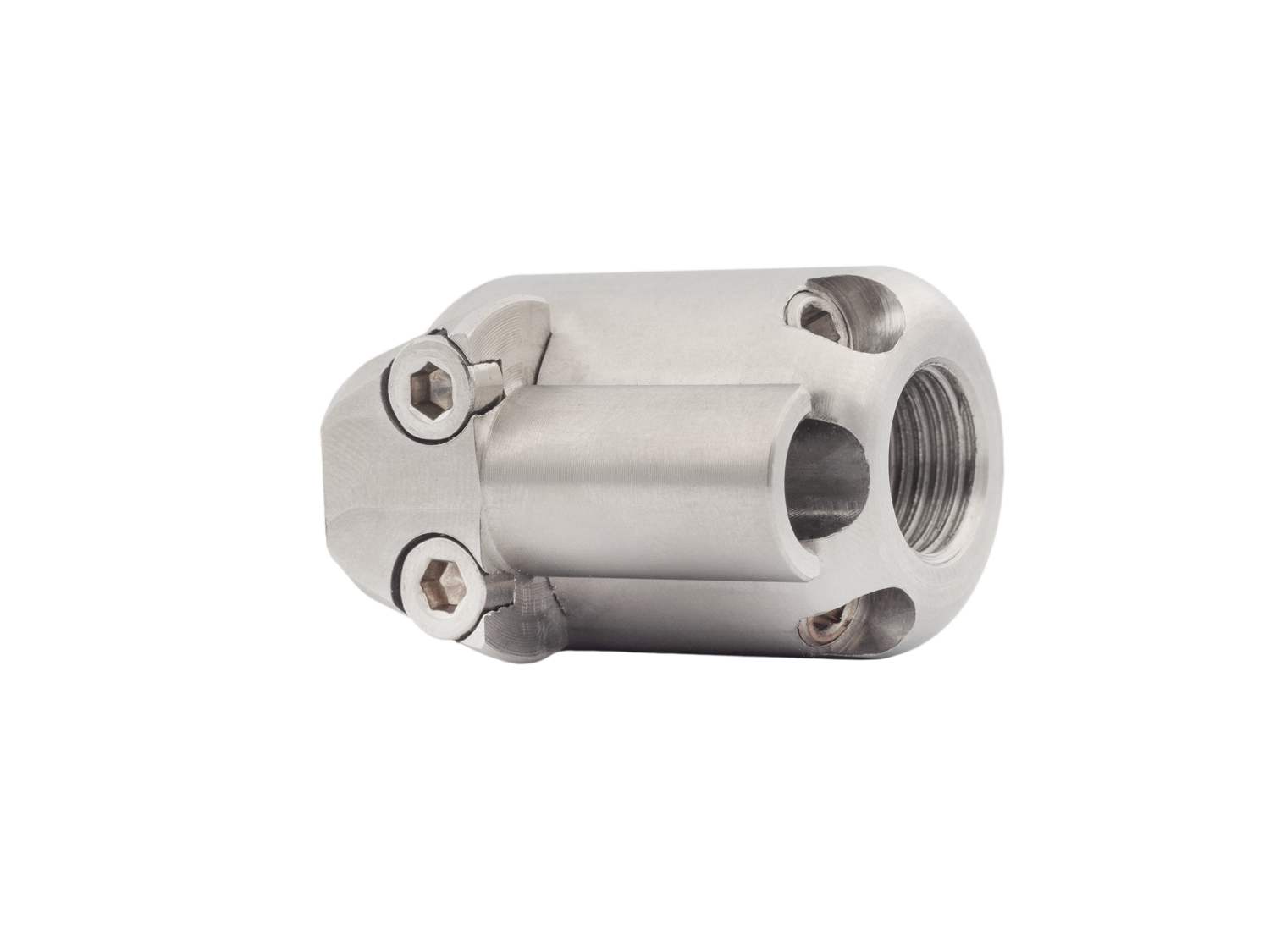

Camera Nozzle 1/4″ Reduced to 1/8″ Jetting Nozzle – Inspection and Camera Guidance Solution
The Camera Nozzle 1/4″ Reduced to 1/8″ jetting nozzle is specifically designed to support manual pipe inspection by guiding and stabilizing the inspection camera head inside sewer and drainage systems. This reduced-orifice configuration provides controlled hydraulic propulsion, allowing technicians to perform accurate visual inspections in pipes ranging from 3″ to 8″.
Camera Nozzle 1/4″ Reduced to 1/8″ Jetting Nozzle – Stainless Steel Construction
Manufactured from high-quality stainless steel, this jetting nozzle delivers excellent corrosion resistance and long service life in professional inspection environments. The 1/4″ threaded inlet combined with a 1/8″ jet configuration ensures compatibility with standard high-pressure hoses while optimizing water flow for camera guidance applications.
Reduced Jet Configuration for Camera Maneuverability

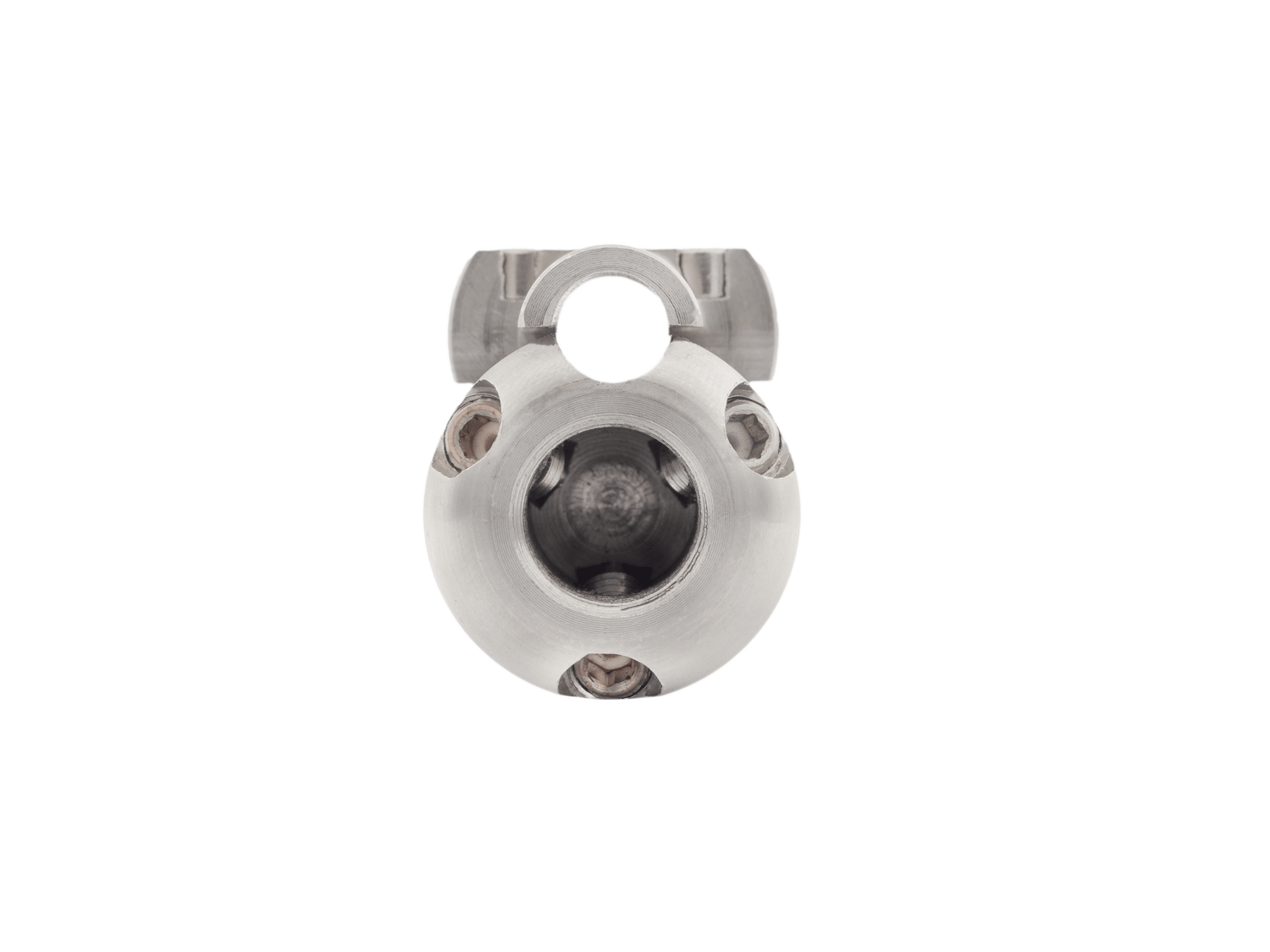

The nozzle incorporates three rear M6 jets reduced to a 1/8″ orifice, generating smooth and stable propulsion without excessive thrust. Operating from approximately 10 GPM, the hydraulic layout allows the nozzle to slide along the camera cable and gently push the inspection head forward. This controlled movement improves directional accuracy and inspection stability.
Applications in Pipe Inspection Operations
The Camera Nozzle 1/4″ Reduced to 1/8″ nozzle is widely used in municipal sewer inspections, industrial pipeline diagnostics, and preventive maintenance programs. It assists operators in navigating bends, joints, and partially obstructed sections while reducing manual effort during extended inspection runs.
Operational Stability and Precision Control
By evenly distributing hydraulic force through the rear jets, the nozzle maintains consistent propulsion with minimal vibration. As a result, camera image quality improves and positioning becomes more predictable. This balance between thrust and control makes it a reliable accessory for confined and complex pipe networks.
Additionally, its compact 1/4″ body combined with reduced 1/8″ jet sizing lowers overall system stress and enhances handling during inspection procedures in residential and commercial environments.
Connection Details
- Original nozzle size: 1/4″
- Threaded connection: 1/8″
- Reduction method: 1/8″ thread adapter included
- Compatible with: 1/8″ fittings
In summary, this stainless steel inspection nozzle combines reduced jet hydraulics, durable construction, and optimized camera guidance to deliver precise and efficient internal pipe inspections.
