Button 1/2″ 12 Jets Reduced to 3/8″ Jetting Nozzle – High-Flow Pipe Cleaning Solution
The Button 1/2″ 12 Jets Reduced to 3/8″ jetting nozzle is designed for intensive pipe cleaning and unclogging when smaller hose connections are required. This reduced configuration allows operators to use 3/8″ jetting hoses while maintaining high-flow cleaning performance in medium to large-diameter pipelines.
Button 1/2″ 12 Jets Reduced to 3/8″ Jetting Nozzle Design

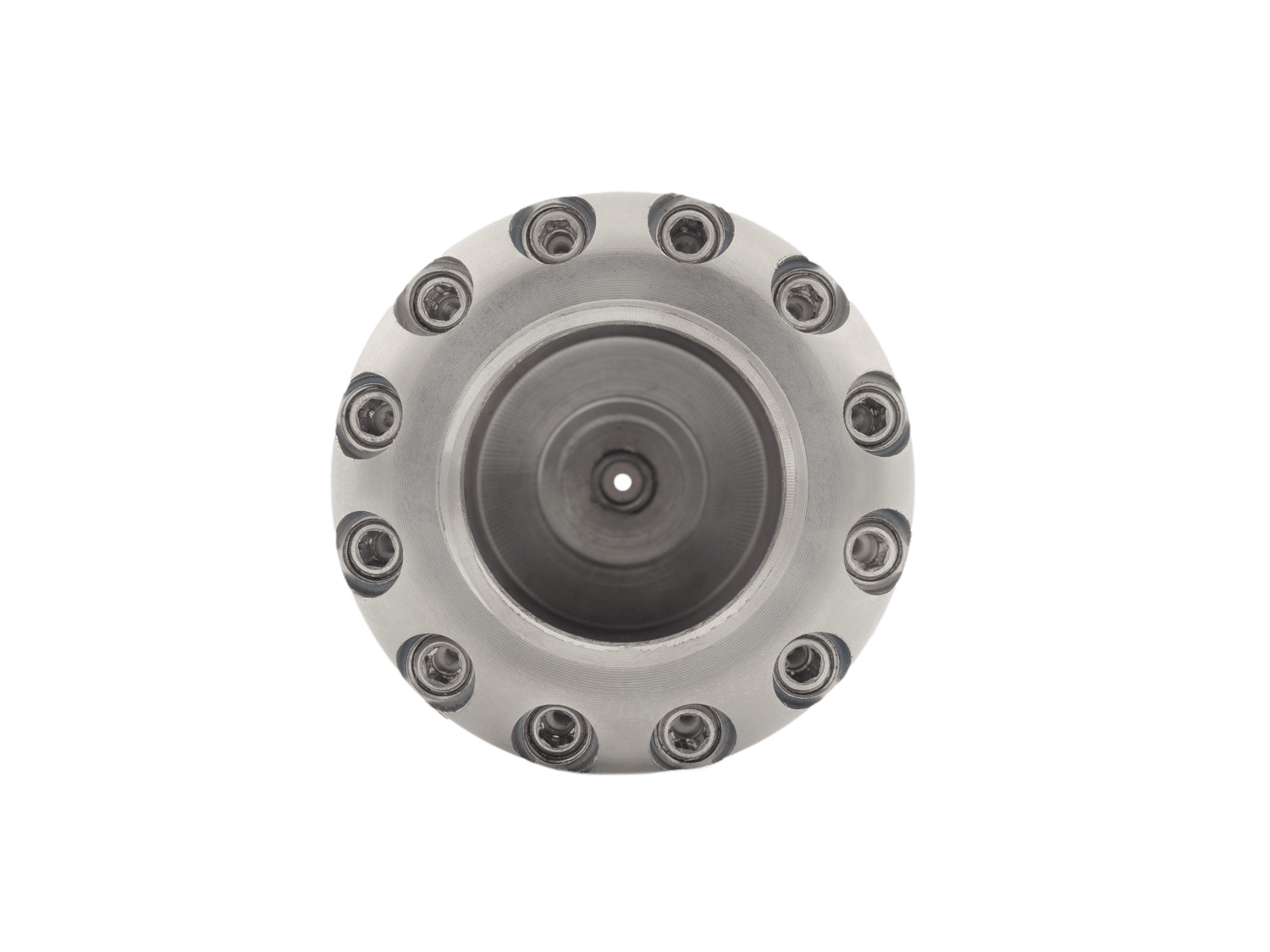

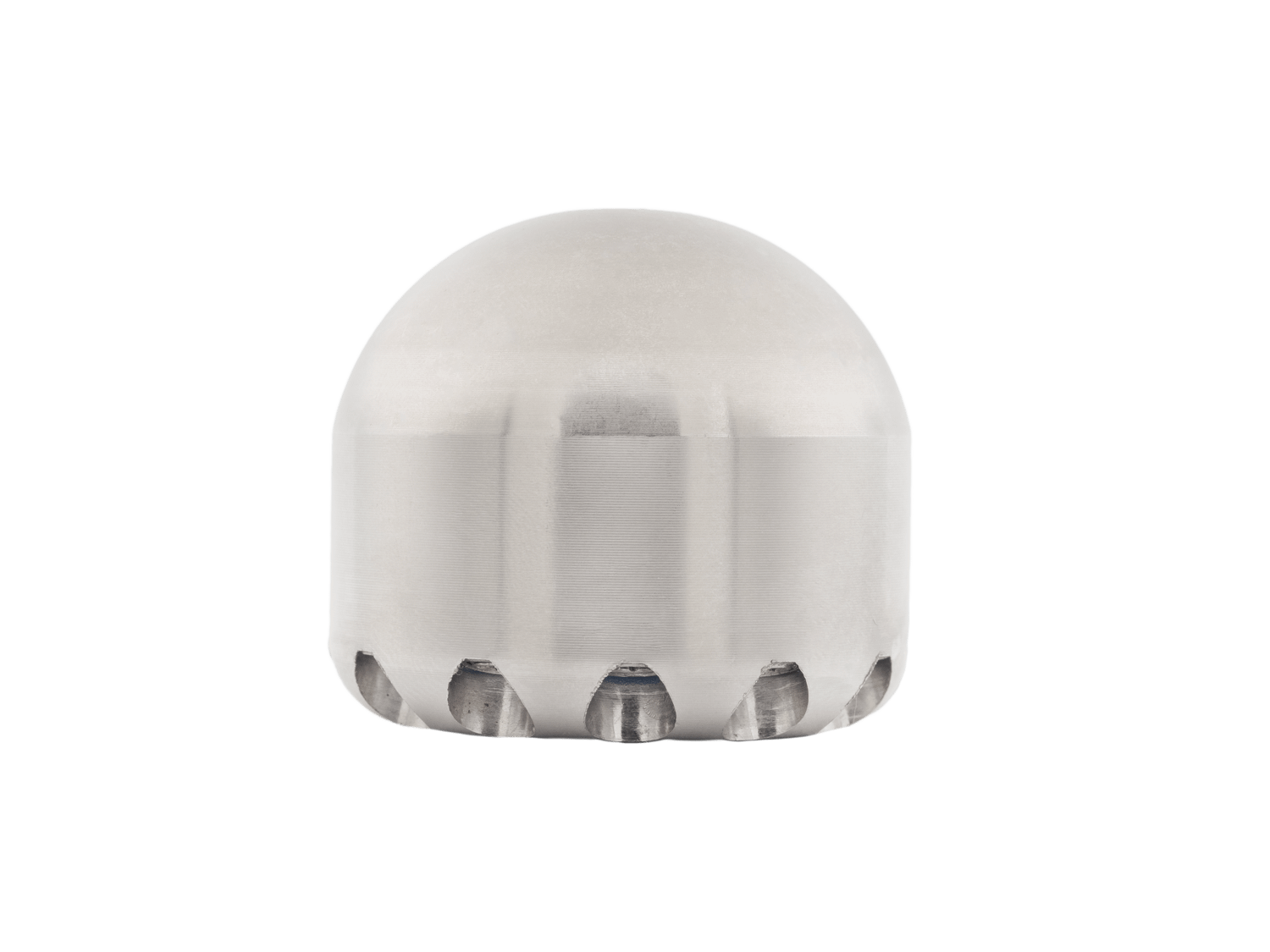

This jetting nozzle features 12 rear ceramic jets and one front jet. The ceramic jets provide excellent resistance to abrasion and extended service life. Rear jets are positioned at a 7° angle, ensuring uniform wall cleaning, while the front jet delivers concentrated impact to break grease, debris, and compacted solids.
Button 12 Jets Reduced to 3/8″ Connection and Cleaning Performance

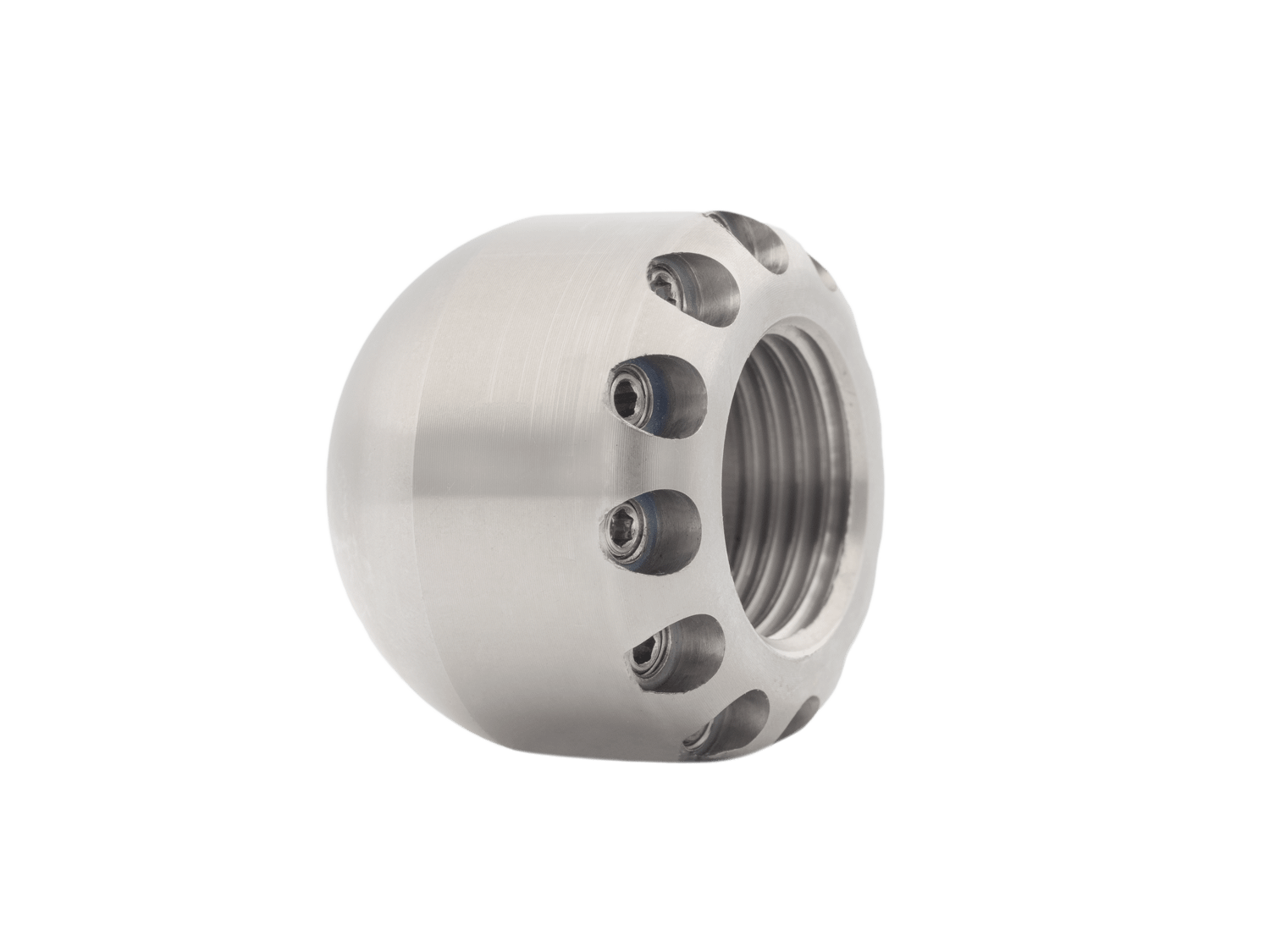

The original 1/2″ nozzle body is adapted to a 3/8″ threaded connection via a reduction adapter. This setup is ideal for lighter and more flexible hose systems. The nozzle operates efficiently in pipes with diameters from 3″ to 10″ and requires a minimum water flow of 26 GPM to achieve deep penetration and consistent cleaning.
Materials, Thread Type, and Wear Resistance
High-quality materials give this reduced jetting nozzle durability for demanding professional use. Ceramic jets outperform drilled stainless steel jets by maintaining jet accuracy and resisting wear over time. The 3/8″ threaded connection ensures fast installation on compatible high-pressure jetting hoses.
Ceramic Jet Technology for Professional Pipe Cleaning
Ceramic jet technology allows this nozzle to operate reliably under high pressure and abrasive conditions. As a result, maintenance intervals are reduced and operational life is extended, making it a cost-effective solution for professional cleaning fleets.
Professional Use Recommendation
For optimal results, operators should ensure sufficient water flow and steady forward movement. This guarantees full wall coverage and prevents uneven wear on the ceramic jets during extended cleaning operations.
Connection Details
- Original nozzle size: 1/2″
- Threaded connection: 3/8″
- Reduction method: 3/8″ thread adapter included
- Compatible with: 3/8″ fittings
Conclusion
In summary, this 12-jet reduced nozzle delivers powerful, uniform, and durable cleaning performance while offering compatibility with smaller hose systems. Its ceramic jet configuration, front drilling jet, and reduced connection make it a reliable solution for demanding professional unclogging tasks.
