Description

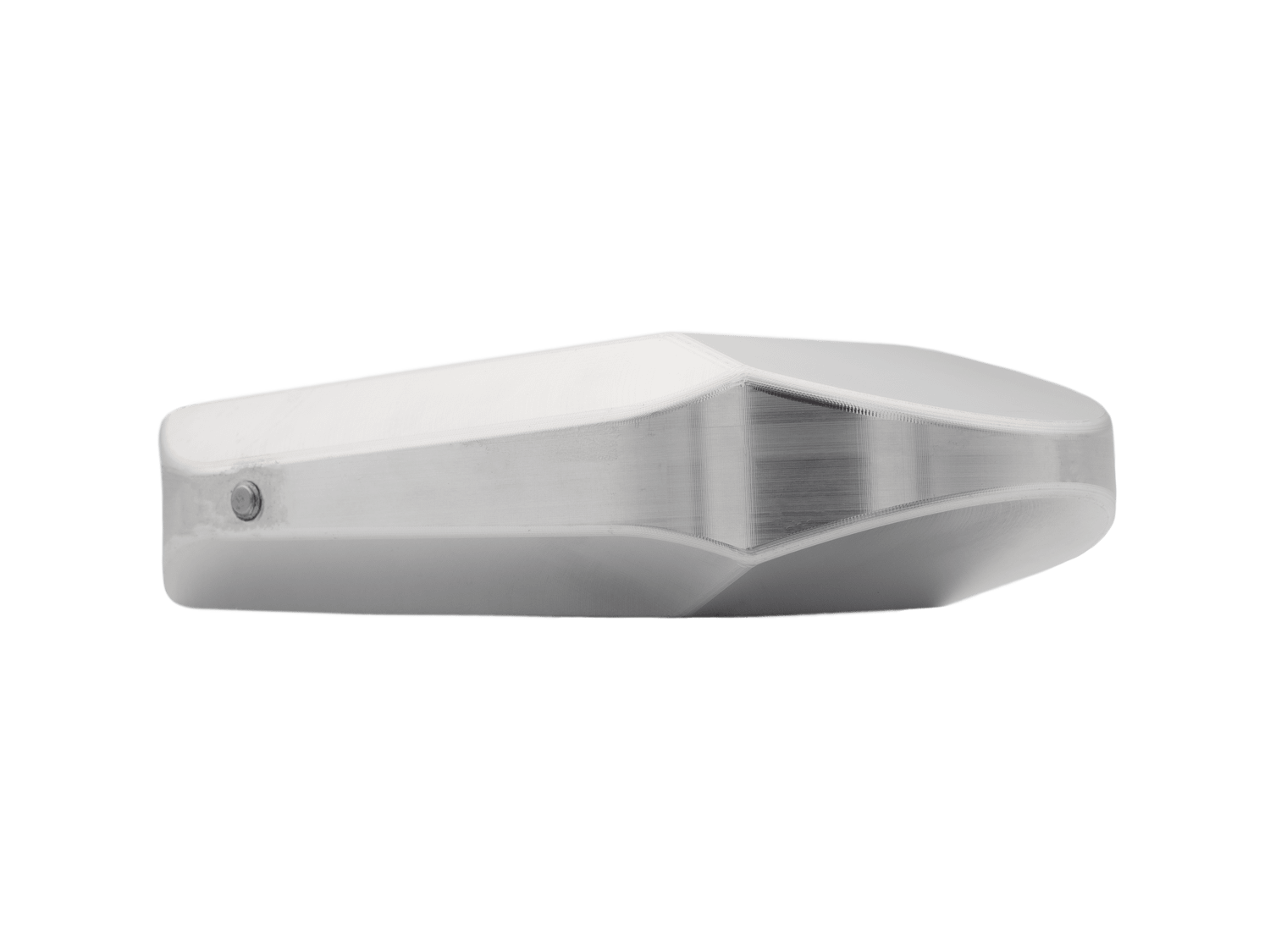

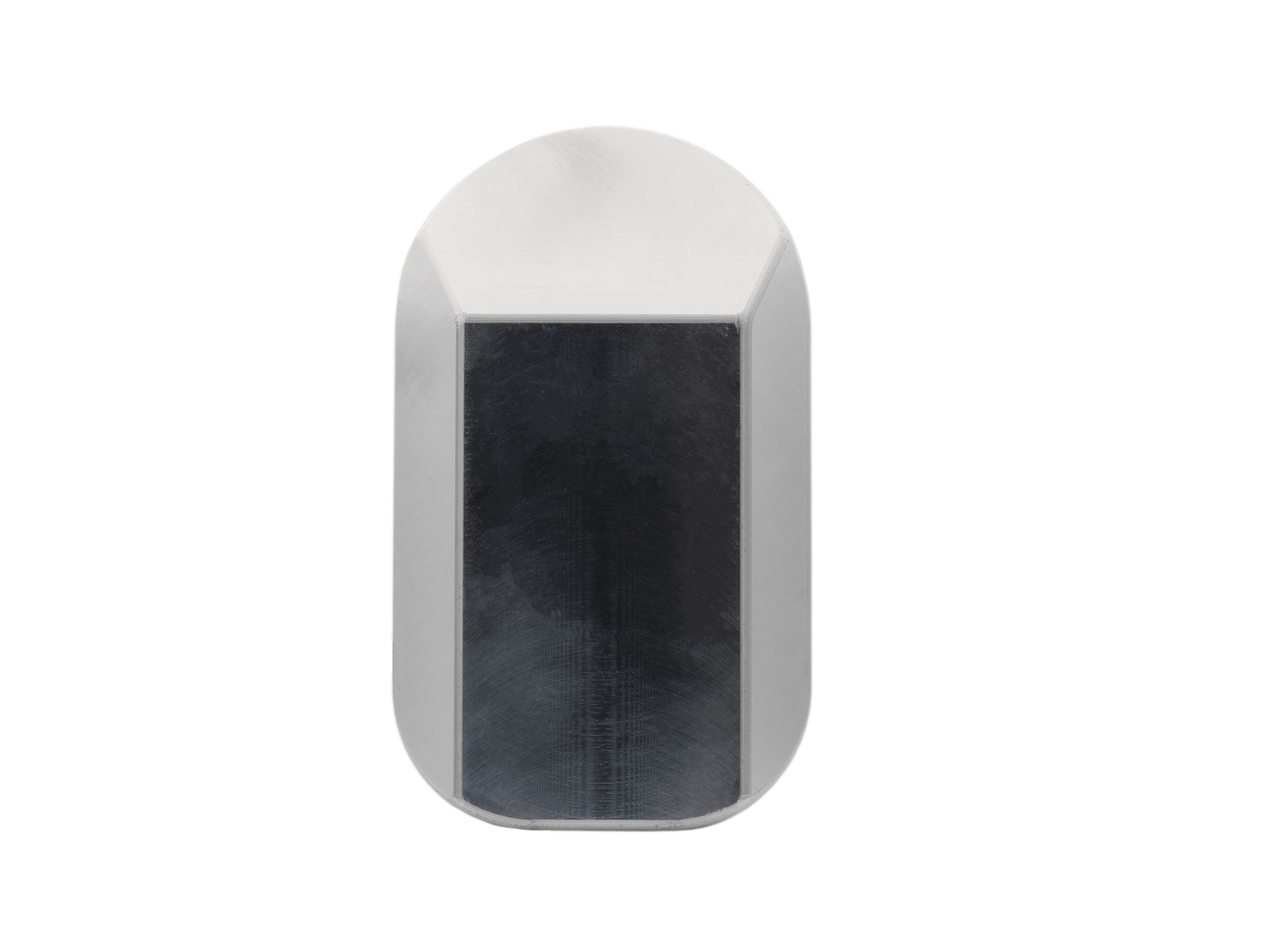

Light Flounder Jetting Nozzle – Aluminum Bottom Cleaning Solution
The Light Flounder jetting nozzle is designed for professional bottom cleaning in sewer and drainage pipes. In many systems, sediment and debris settle along the invert, creating restricted flow and recurring blockages. This nozzle solves that problem. Its flat, flounder-shaped body stays stable and parallel to the pipe bottom. As a result, it improves traction and increases debris transport efficiency during cleaning operations.

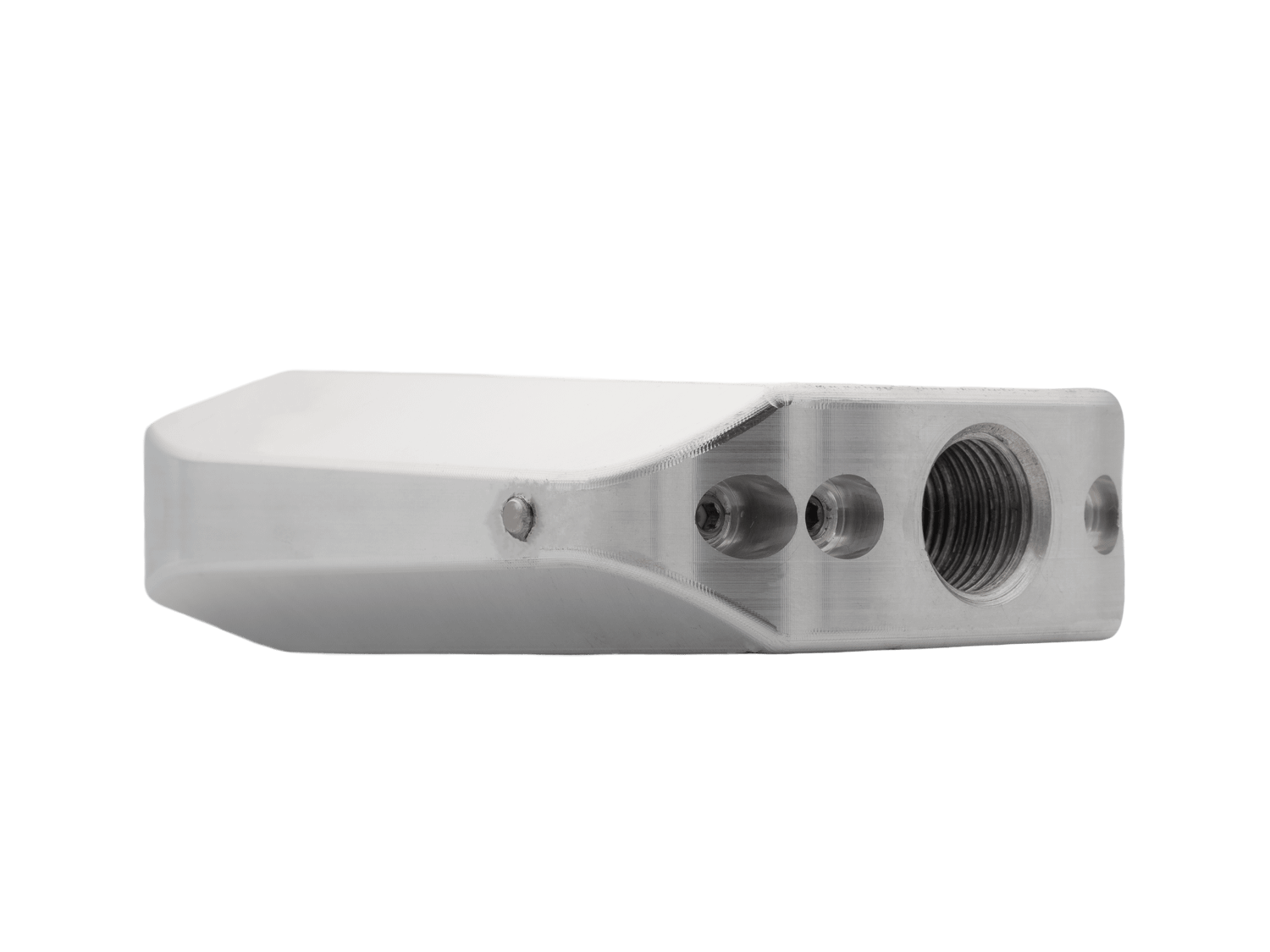

Light Flounder Jetting Nozzle – Aluminum Body and 1/2″ Thread
Manufactured from high-grade aluminum, this jetting nozzle offers an excellent balance between weight and strength. The lightweight construction reduces operator fatigue during long runs. At the same time, it maintains structural durability under high-pressure conditions. The integrated 1/2″ threaded connection fits standard high-pressure hoses. Therefore, installation remains simple and compatible with most professional sewer jetting equipment.

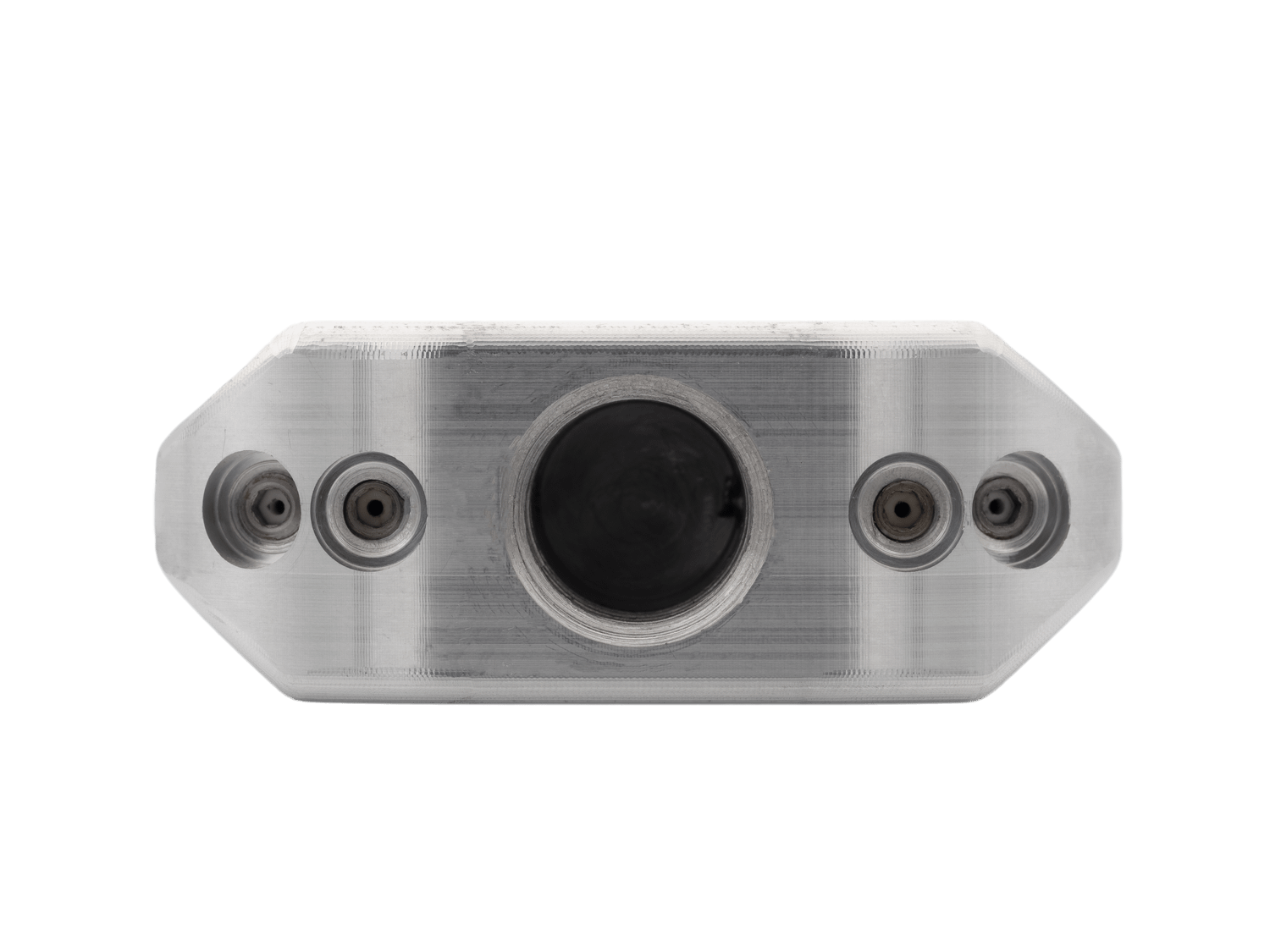

Four Rear M6 Jets at 5º for Controlled Bottom Dragging
This configuration includes four rear M6 jets positioned at a precise 5º angle. These jets create strong pulling force while maintaining continuous ground contact. Consequently, sediment, sand, grease, and sludge are dragged efficiently toward the outlet. The system operates from 10 GPM, providing stable propulsion without excessive turbulence. In addition, the low jet angle maximizes bottom impact rather than wall dispersion.
Optional Swivel for Enhanced Stability
The optional swivel significantly improves performance. It allows the hose to rotate independently from the nozzle body. Because of this, the Light Flounder jetting nozzle remains parallel to the ground instead of rolling. This stability ensures uniform bottom cleaning. Furthermore, it reduces hose stress and improves control when navigating bends or long pipe sections.
Applications in 6″ to 16″ Pipes
This bottom cleaning solution performs effectively in pipes ranging from 6″ to 16″. Municipal sanitation teams use it for sediment removal in large collectors. Industrial operators rely on it to clear heavy buildup in drainage lines. For this reason, it is especially valuable in preventive maintenance programs where consistent bottom cleaning reduces long-term blockage risks.
In summary, the Light Flounder jetting nozzle combines lightweight aluminum construction, four precision rear jets, stable bottom tracking, and optional swivel control to deliver reliable sediment removal in medium and large diameter pipelines.
