Heavy Flounder Jetting Nozzle – Bottom Cleaning Solution for Large Pipes
Heavy Flounder jetting nozzle for bottom cleaning in large pipes: a flat, stable design that targets sediment on the pipe invert and improves debris transport during high-flow work.
This flounder-style bottom cleaner is built for intensive maintenance in large-diameter sewer and drainage systems. Unlike round jetting tools that can lift off the floor, the flat body stays aligned with the invert. Therefore, crews remove sludge, sand, and heavy deposits more consistently, especially on long runs where buildup sits on the bottom.

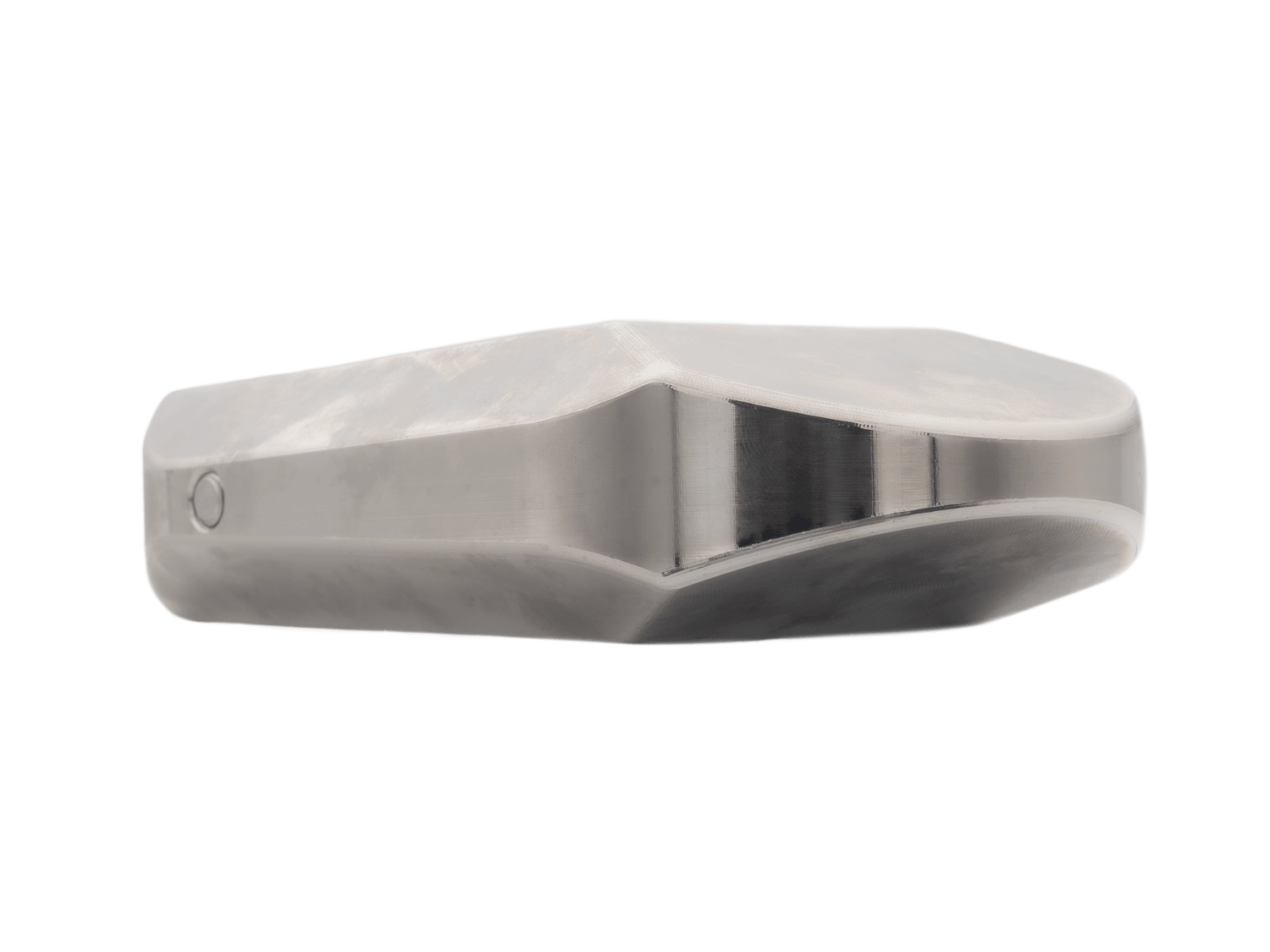

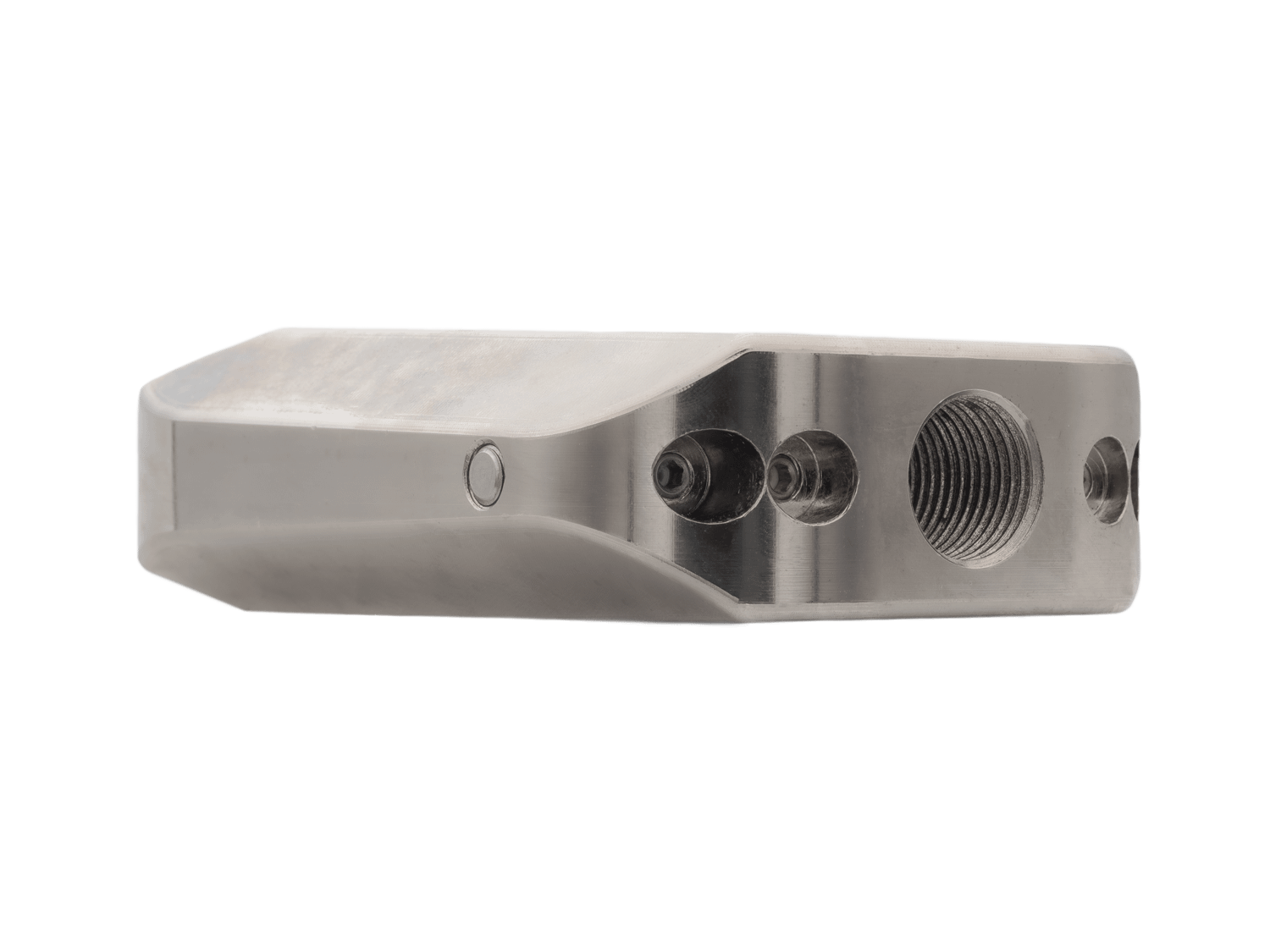

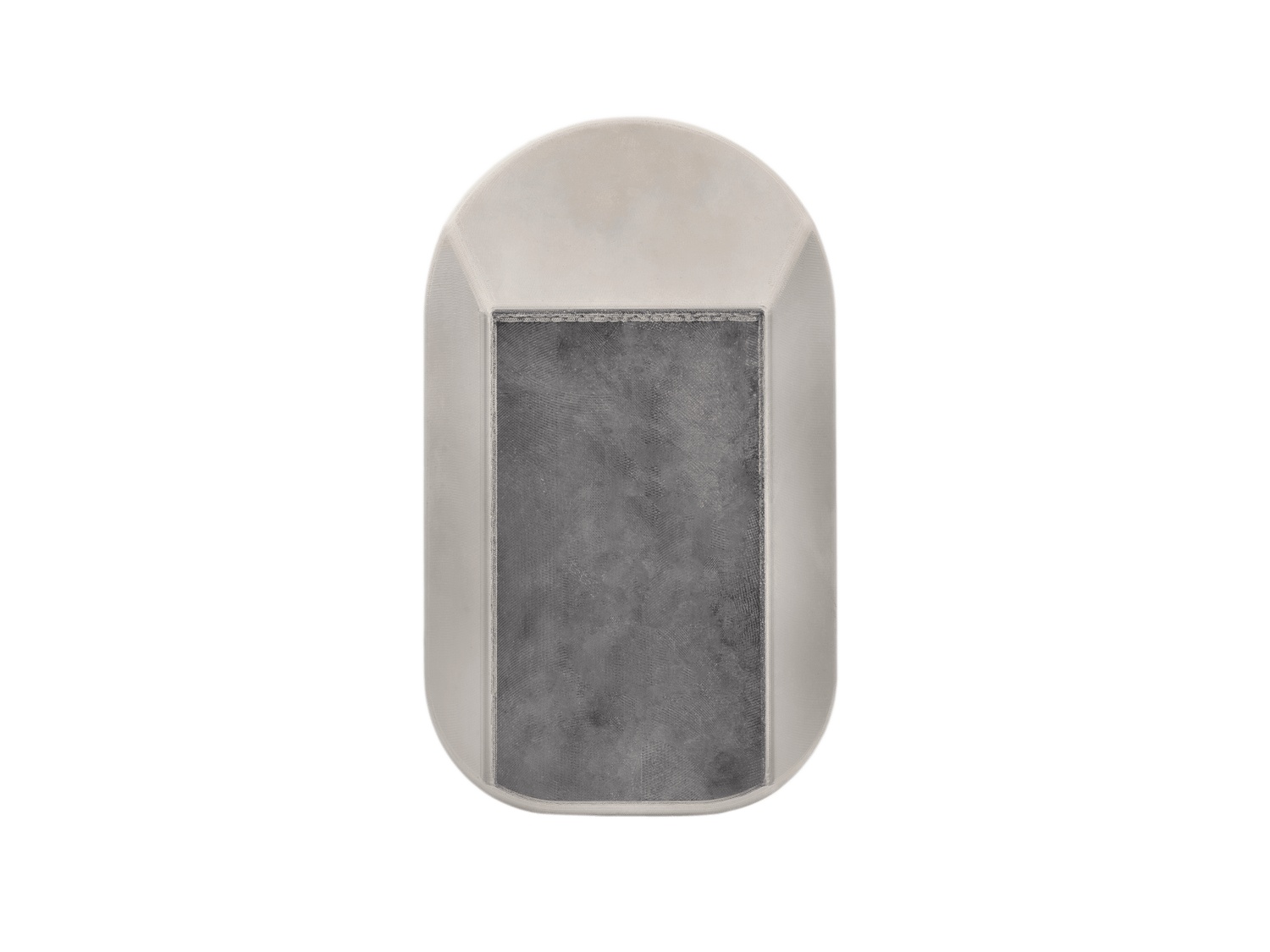

Heavy Flounder Jetting Nozzle – Flat Stainless Steel Construction
Manufactured from stainless steel, this bottom cleaning tool resists corrosion and performs well in abrasive environments. In addition, its flat profile improves stability and helps the nozzle remain parallel to the pipe floor. It includes a 1/2″ threaded connection for standard high-pressure hoses and works effectively in pipes from 6″ to 24″.

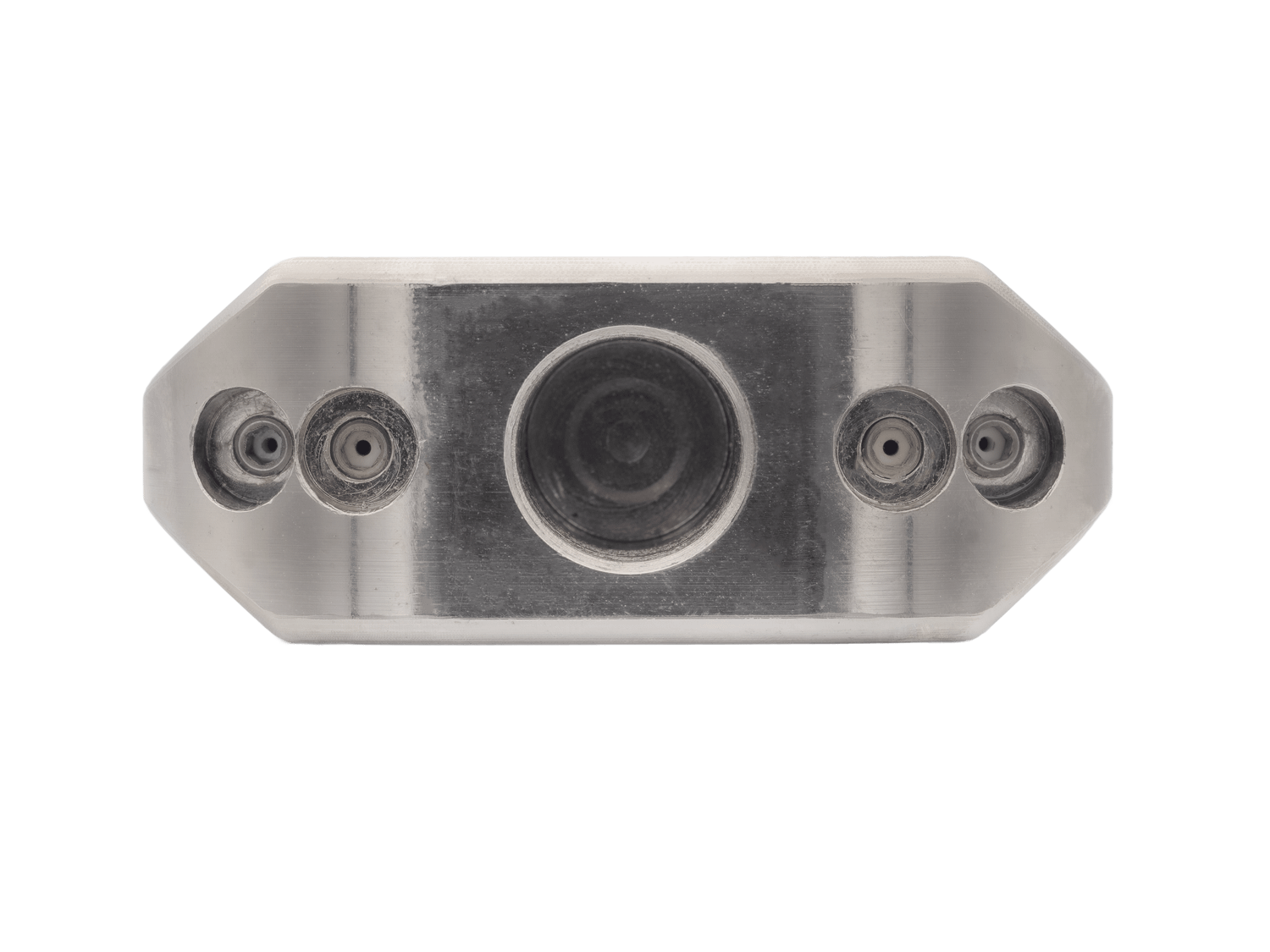

Low-Angle Rear Jets for Bottom Dragging Power
The nozzle incorporates four rear M6 jets angled at 5º. Because the jet angle stays low, water energy concentrates on the pipe bottom instead of spraying upward. Consequently, the tool increases dragging force and moves sediment toward the outlet with fewer repeated passes. Recommended operation starts from 21 GPM for strong hydraulic performance in large lines.
Optional Swivel for Stability and Hose Control
Operators can add an optional swivel to improve handling. This accessory lets the hose rotate while the body stays flat and controlled, so the cleaning pattern remains consistent. With the swivel installed, dimensions are approximately 3.54″ x 9.45″ and total weight is around 7.05 lbs, which supports stable contact on the invert during demanding work.
Applications in Sewer and Infrastructure Maintenance
This flat bottom cleaner is widely used in municipal sanitation, stormwater systems, and industrial drainage networks. It excels at removing sand, gravel, settled sludge, and compacted debris. Moreover, the stable geometry reduces unnecessary wall contact, which helps lower wear and improves efficiency during prolonged operations.
In summary, the Heavy Flounder jetting nozzle delivers reliable invert contact, strong sediment dragging, and durable stainless steel construction for professional bottom-cleaning tasks in large-diameter pipelines.
