3/4″ Jetting Nozzles
3/4″ jetting nozzles deliver powerful sewer cleaning in medium and large diameter pipelines. Operators use these nozzles on professional hydro jetting units to create strong rear thrust and remove grease, scale, sand, and compacted waste. We machine each nozzle from hardened stainless steel for durability and corrosion resistance. They maintain stable hydraulic output under high pressure. These nozzles perform efficiently in pipes from 150 mm to 300 mm and provide consistent cleaning power in demanding environments.
-
Thread:

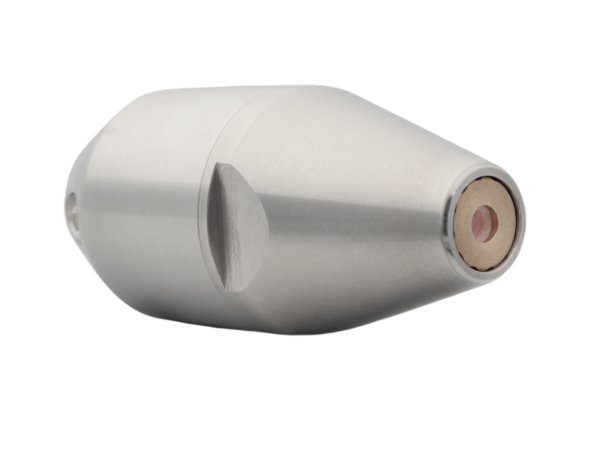

$505.00Attributes Value Weight 3.5 lbs Thread 1" – 3/4"
Pipe diameter 6'' – 24'' (recommended)
Rear jet 6 x M 8 // 30º 10º
Water Flow Rate (GPM) Starting from 42
Dimensions (inches) 2.36'' x 5.28''
Weight (lbs) 3.5
Connection Details Original nozzle size: 1″
Threaded connection: 3/4″
Reduction method: 3/4″ thread adapter included
Compatible with: 3/4″ fittings -
Thread:
$350.00Attributes Value Weight 0.77 lbs Thread 3/4”
Pipe diameter 8'' – 16'' (recommended)
Jets 6 X M6 // 30º + 1 rotating front jet
Water Flow Rate (GPM) Starting from 21
Dimensions (inches) 1.50'' x 2.95''
Weight (lbs) 0.77
-
Thread:
$135.00Attributes Value Weight 1 lbs Thread 3/4"
Pipe diameter 6" – 12" (recommended)
Jets 6 X M6 // 15º
Water Flow Rate (GPM) Starting from 16
Dimensions (inches) 2.0" x 2.6"
Weight (lbs) 1
-
Thread:
$135.00Attributes Value Weight 1 lbs Thread 3/4"
Pipe diameter 6" – 12" (recommended)
Jets 6 X M6 // 15º
Water Flow Rate (GPM) Starting from 16
Dimensions (inches) 2.0" x 2.6"
Weight (lbs) 1
-
Thread:
$220.00Attributes Value Weight 1.5 lbs Thread 1" – 3/4"
Pipe diameter 6'' – 20'' (recommended)
Jets (R) 6 X M6 (F) 3 X M6
Water Flow Rate (GPM) Starting from 21
Dimensions (inches) 1.87'' x 3.54''
Weight (lbs) 1.5
Connection Details Original nozzle size: 1″
Threaded connection: 3/4″
Reduction method: 3/4″ thread adapter included
Compatible with: 3/4″ fittings -
$375.00Attributes Value Weight 2.6 lbs Thread 1” – ¾”
Pipe diameter 6'' – 18'' (recommended)
Jets 6 x M8 // 30º-10º
Water Flow Rate (GPM) Starting from 16
Dimensions (inches) 2.3'' x 5.2''
Weight (lbs) 2.6
-
Thread:

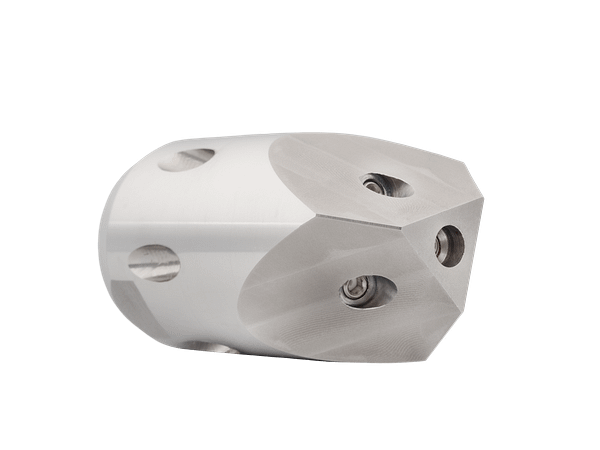

$980.00Attributes Value Weight 19.84 lbs Thread 1” – 3/4"
Pipe diameter 12" – 48" (recommended)
Jets 8x M8 // 5º-10º
Water Flow Rate (GPM) Starting from 53
Dimensions (inches) 5.8" x 8.86" 5.8" x 13.39" (Fitting)
Weight (lbs) 19.84
Connection Details Original nozzle size: 1″
Threaded connection: 3/4″
Reduction method: 3/4″ thread adapter included
Compatible with: 3/4″ fittings -
$375.00Attributes Value Weight 2.6 lbs Thread 1”, 3/4”
Pipe diameter 6'' – 18'' (recommended)
Jets 6 x M8 // 30º – 10º
Water Flow Rate (GPM) Starting from 16
Dimensions (inches) 2.36'' x 4.33''
Weight (lbs) 2.6
-
$570.00Attributes Value Weight 7.9 lbs Thread 1”, 3/4”
Pipe diameter 6" – 24"
Jets 10 x M8 // 30º – 10º
Water Flow Rate (GPM) Starting from 42
Dimensions (inches) 3.15" × 7"
Weight (lbs) 8.82
-
Thread:
$1,100.00Attributes Value Weight 5.29 lbs Thread 3/4"
Dimensions (body) 8" x 12"
Weight (lbs) 5.29
Water Flow Rate (GPM) Starting from 26
-
Thread:
$1,575.00Attributes Value Weight 9.5 lbs Thread 1”
Pipe diameter 8'' – 36'' (recommended)
Jets 2 x M10
Water Flow Rate from 53 gpm
Dimensions (inches) 4.72'' x 8.6''
Weight (lbs) 9.5
Connection Details Original nozzle size: 1″
Threaded connection: 3/4″
Reduction method: 3/4″ thread adapter included
Compatible with: 3/4″ fittings -
Thread:
$1,155.00Attributes Value Weight 4.85 lbs Thread 3/4"
Pipe diameter 8" – 24" (recommended)
Jets 2 x M8 // 25º
Water Flow Rate (GPM) fStarting from 26
Dimensions (inches) 3.39" × 7.48"
Weight (lbs) 4.85
-
Thread:
$195.00Attributes Value Weight 1.2 lbs Thread 1"
Pipe diameter 8" – 18" (recommended)
Jets (R) 8 x M6 // 15º-30º // (F) 1 x M6
Water Flow Rate (GPM) Starting from 48
Dimensions (inches) 2" x 3.07"
Weight (lbs) 1.2
Connection Details Original nozzle size: 1″
Threaded connection: 3/4″
Reduction method: 3/4″ thread adapter included
Compatible with: 3/4″ fittings -
Thread:
$115.00Attributes Value Weight 0.51 lbs Thread 3/4"
Pipe diameter 8" – 12" (recommended)
Jets 6 x M6
Water Flow Rate (GPM) Starting from 16
Dimensions (inches) 1.3" x 2.3"
Weight (lbs) 0.51
